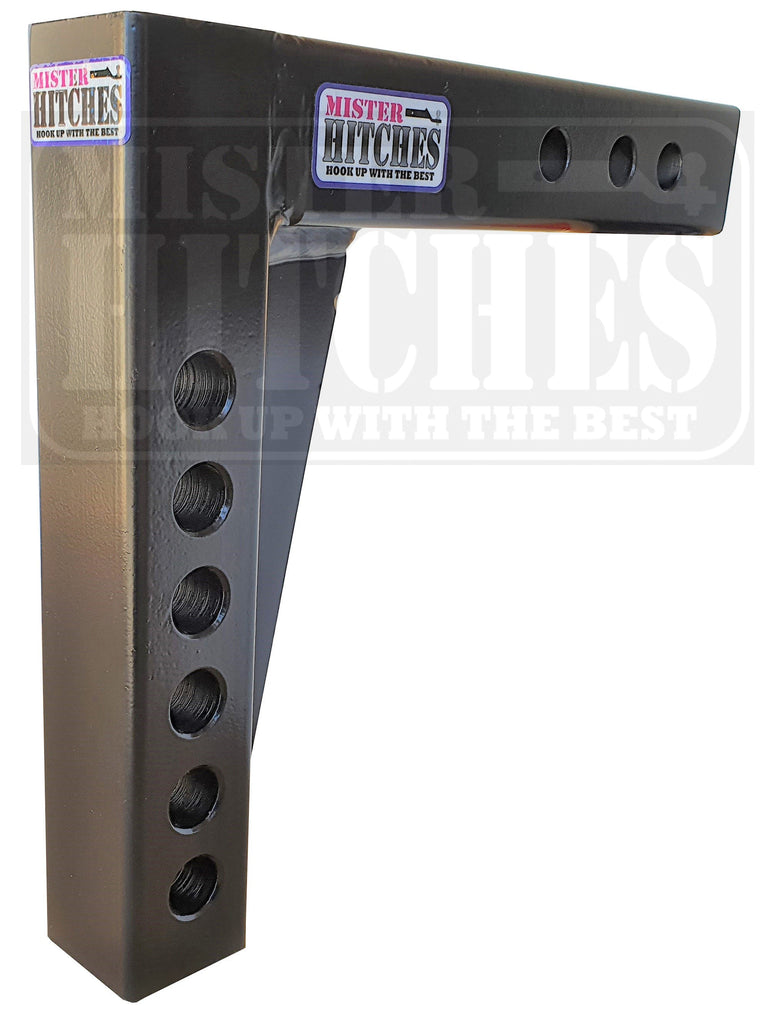

MHWDS1011
THIS SHANK IS OPTIONAL WHEN EXTRA HEIGHT OR DROP IS REQUIRED FOR YOUR WEIGHT DISTRIBUTION SYSTEM.
SUITS MISTER HITCHES WEIGHT DISTRIBUTION SYSTEMS & MULTI-HITCH MIX 'N' MATCH SYSTEM
MADE FROM SOLID STEEL
INCORPORATES 3 HITCH PIN HOLES FOR GREATER ADJUSTMENT, ALSO CAN SUIT A SHORT SHANK OF A FORD RANGER TOW BAR
PIN HOLES DISTANCE FROM END OF THE SHANK 50MM, 82.5MM AND 125MM
DROP (TOP OF SHANK TO TOP OF WDH BALL PLATFORM) = 135MM
RISE (TOP OF SHANK TO TOP OF WDH BALL PLATFORM) = 254MM
SHANK OVERALL HEIGHT = 286MM
SHANK IS SOLID STEEL 50.8MM SQUARE SUITS HAYMAN REESE STYLE TOWBAR RECEIVERS
4.5T RATED - SHANKS ONLY
PART NUMBER: MHWDS1011
