MHWDS1014

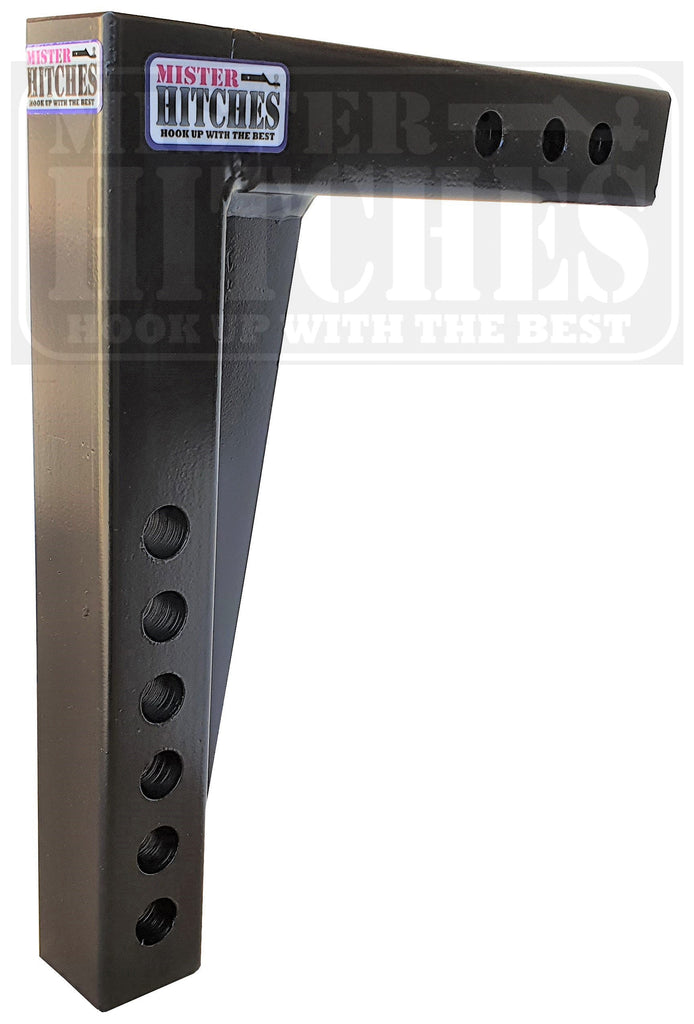

SHANK, EXTRA LONG SUITS MISTER HITCHES WEIGHT DISTRIBUTION SYSTEMS (MHWDS1014)

  • Sale
  • Regular price
Tax included.


THIS SHANK IS OPTIONAL WHEN EXTRA HEIGHT OR DROP IS REQUIRED ON YOUR WDH

SUITS MISTER HITCHES WEIGHT DISTRIBUTION & MULTI-HITCH MIX 'N' MATCH SYSTEMS

MADE FROM SOLID STEEL

INCORPORATES 3 HITCH PIN HOLES FOR GREATER ADJUSTMENT, ALSO CAN SUIT A SHORT SHANK OF A FORD RANGER TOW BAR

CENTRE OF PIN HOLE TO END OF SHANK: 50MM, 82.5MM AND 125MM

DROP (TOP OF SHANK TO TOP OF WDH BALL PLATFORM) = 229MM

RISE (TOP OF SHANK TO TOP OF WDH BALL PLATFORM)  = 330MM

SHANK OVERALL HEIGHT = 355.6MM

SHANK IS SOLID STEEL 50.8MM  SQUARE SUITS HAYMAN REESE STYLE TOWBAR RECEIVERS

4.5T RATED - SHANK ONLY

PART NUMBER:  MHWDS1014
