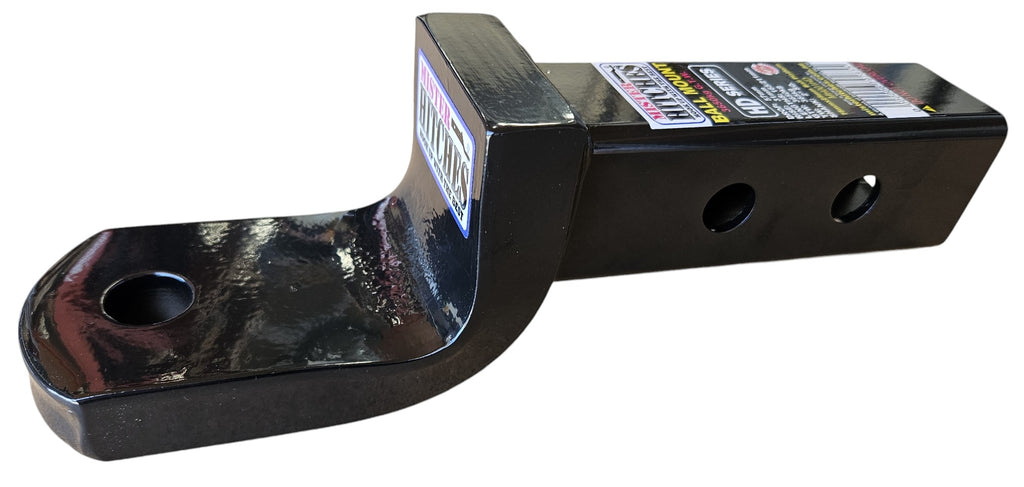

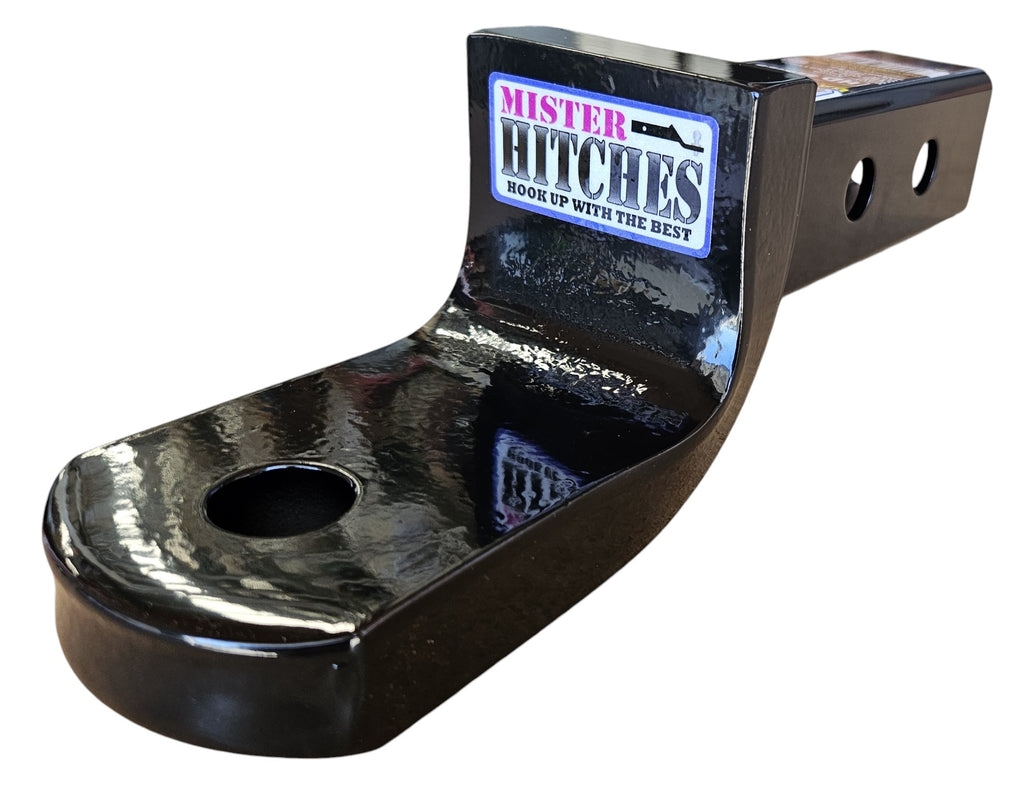

MISTER HITCHES Heavy Duty 3650kg "HD SERIES" Ball Mount 57mm DROP or 31mm RISE - SHORT SHANK

• REVERSIBLE - RAISES OR LOWERS BALL TO THE RIGHT LEVEL FOR TOWING
• BLACK POWDER COATED FINISH
• ROBOTIC WELDED FOR CONSISTENT QUALITY
• CNC MACHINED FOR MAXIMUM ACCURACY
• FITS 2" X 2" TOWBAR RECEIVERS
• EXTRA HEAVY DUTY 25MM THICK X 75MM WIDE BALL PLATFORM

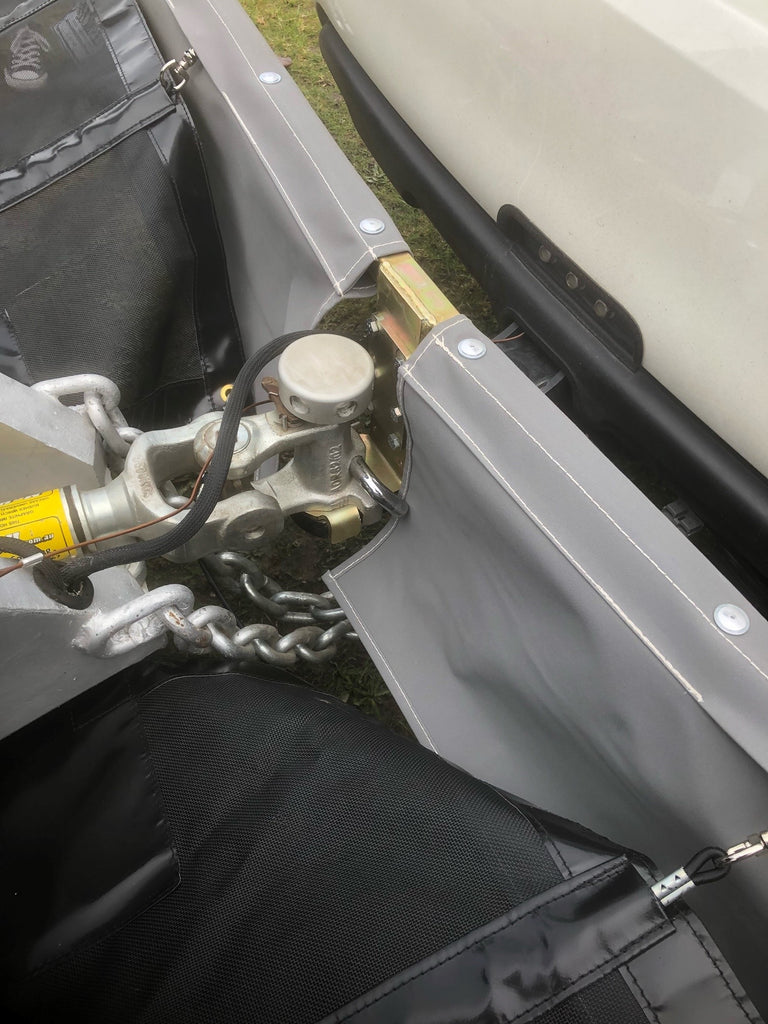

• STONE STOMPER COMPATIBLE
• D035 COMPATIBLE
• ADR62 COMPLIANT

GROSS TRAILER WEIGHT: 3650KG

TONGUE WEIGHT: 365KG

BALL HOLE SIZE: 7/8"

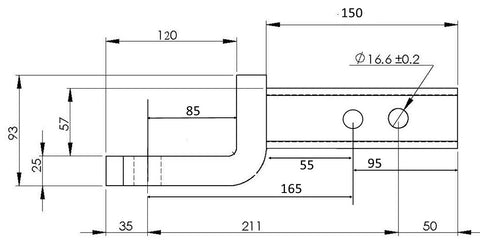

PIN HOLE TO END OF SHANK: 50MM

DROP: 57MM

RISE: 31MM

LENGTH: 211MM (MEASURED FROM CENTRE OF PIN HOLE TO CENTRE OF BALL HOLE)

NOTE: DIMENSIONS MAY VARY WITHOUT PRIOR NOTIFICATION
