MHABM45-S4

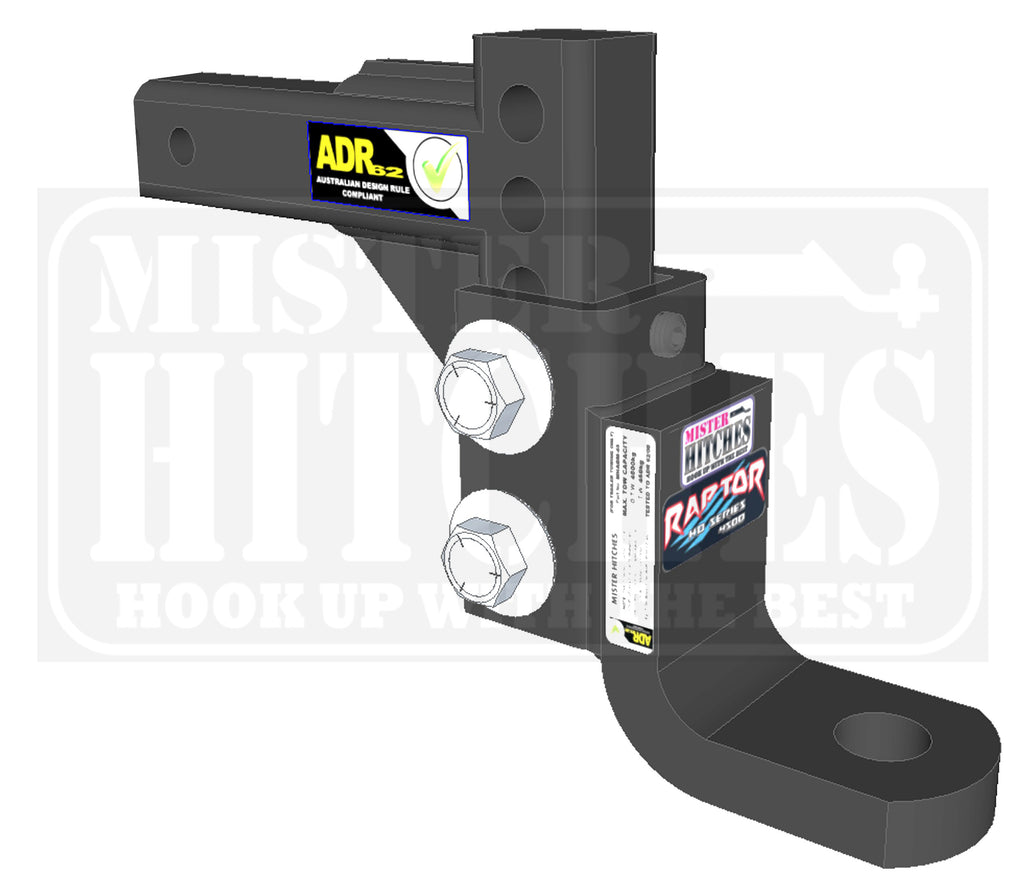

MISTER HITCHES RAPTOR 4500kg Super Duty Adjustable Ball Mount 16 STAGE (MHABM45-S4)

  • Sale
  • Regular price
Tax included.


THIS NEW RAPTOR DESIGN HAS BEEN MADE ESPECIALLY FOR VEHICLES HAVING A SHALLOW TOW BAR RECIEVER EG. PAJERO SPORT OR FORD RANGER.
ALSO SUITABLE WHERE A SHORTER SHANK IS REQUIRED.
· 4,500kg MAX. TOW  CAPACITY.  450kg MAX. T.W.
· TESTED & COMPLIANT WITH ADR62/02.
· TESTED UP TO 6,750kg (LONGITUDINAL TENSION).
· SOLID STEEL SHANK WITH DUAL GUSSETS FOR SUPERIOR STRENGTH.
· INCLUDED IS A TOW BALL REDUCING BUSH & WASHER SUITS 50mm OR 70mm TOW BALLS. (tow balls sold separatly)
· REVERSIBLE SHANK & BALL PLATFORM GIVE GREATER DROP OR RISE HEIGHT.

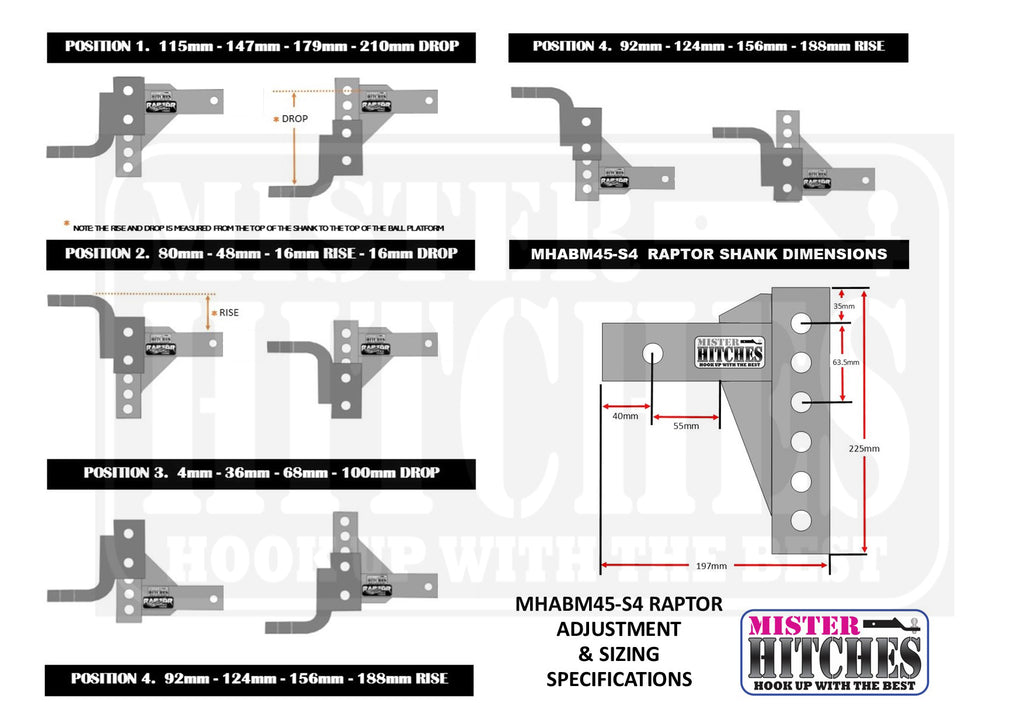

· 16 STAGE ADJUSTMENTS MAX RISE 188mm MAX DROP 210mm. (32mm increments)
· OPTIONAL SHANKS CAN GIVE A DROP OF 370mm & RISE UP TO 350mm
· PIN HOLE TO BALL HOLE: 267mm. PIN HOLE TO END OF SHANK: 40mm
· H.T. 3/4” BOLTS, NYLOC LOCKING NUTS AND TOOTHED CONICAL WASHERS GIVES SUPERIOR STRENGTH.
· POWDER COATED ENAMEL FINISH GIVES GREATER PROTECTION FROM THE ELEMENTS.
· COMPATIBLE WITH DO35 & DO45, TREG, McHITCH, ALKO & ARK COUPLINGS.
· DESIGNED & MANUFACTURED TO MISTER HITCHES STRICT QUALITY AND SPECIFICATIONS.
PART NUMBER:  MHABM45-S4
