MHTBK-VWA
HEAVY DUTY VW AMAROK TOWBAR DIY COMPLETE KIT
ADR APPROVED IN AUSTRALIA
THIS KIT SUITS VW AMAROK 2011 TO CURRENT, 4WD UTE, MY11, TRENDLINE, HIGHLINE, ULTIMATE
MODELS WITH INTEGRATED REAR BUMPER STEP

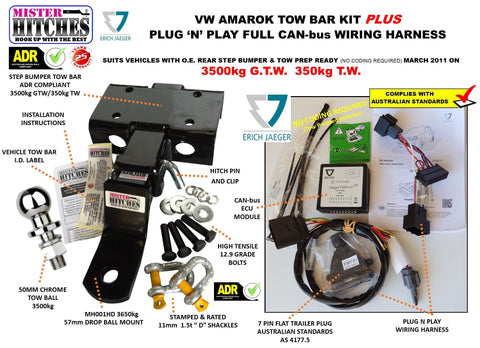

THIS KIT INCLUDES
- TOW BAR. BOLT ON, ADR APPROVED, 3500KG GTW, 350KG TW RATED CAPACITY , 2" SQ. RECEIVER TUBE, BLACK POWDER COATED
- 2 X GALVANISED STAMPED AND RATED 3/8" "D" SHACKLES
- 4 X MOUNTING BOLTS HEAVY DUTY GRADE 12.9, SIZE: M12X1.5, 4 X FLAT WASHERS AND 4 X SPRING WASHERS
- 1 X HITCH PIN AND CLIP
- 1 X 2" DROP 3/4"RISE TOW BALL MOUNT WHICH IS REVERSIBLE (MH001HD)
- 1 X 50MM 3500KG ADR APPROVED CHROME TOWBALL WITH 60MM SHANK LENGTH AND FLAT SIDES FOR EASE OF TIGHTENING.
- FITTING INSTRUCTION SHEET
- VEHICLE I.D. INSIDE DOOR LABEL.
- THE ECS WIRING HARNESS IS O.E. QUALITY, MADE IN GERMANY BY ENRIC JAEGER AND IS DESIGNED SO AS TO NOT COMPROMISE YOUR VEHICLES ELECTRICAL SYSTEM, THE WIRE DIAMETERS AND SIGNAL OUTPUTS ARE CAREFULLY CALCULATED TO POWER YOUR CARAVAN OR TRAILERS LIGHTS WITHOUT OVERLOADING OR HARMING YOUR VEHICLES ELECTRICAL SYSTEM, OUR ECS HARNESS COMPLIES WITH THE FOLLOWING STANDARDS: AS4177-5, ISO14001, TS16949, 2004/104/EC EMC AND IPC.
- NOTE: THE ECS WIRING HARNESS IS COMPATIBLE WITH:
-
- PDS - Parking Sensor Cutouts *
- LED Lighting Systems *
- TSP / Trailer Stability Programs *
- Can Bus Systems
- Electric Brake Pickup - Pre Wired in Harnesses *
- Trailer Globe Failure Sensor Warning
- No Coding is required if the vehicle has been "Tow Prepped" at factory.
- Directly plugs into OE Connectors under the car and under the dash.
- No Special Tools or Soldering Required
- All kits comes fully packaged - no additional parts required!
- Easy to Follow Fitting Instructions, however a high degree of technical competence is required install the harness or we recommend to use a certified technician to install.
- 7 Pin Flat Socket included with every kit
