MH002HD

MISTER HITCHES Heavy Duty 3650kg "HD SERIES" Ball Mount 57mm DROP or 31mm RISE

  • Sale
  • Regular price
Tax included.


  • REVERSIBLE - RAISES OR LOWERS BALL TO THE RIGHT LEVEL FOR TOWING
  • BLACK POWDER COATED FINISH
  • ROBOTIC WELDED FOR CONSISTENT QUALITY
  • CNC MACHINED FOR MAXIMUM ACCURACY
  • 2 HOLES FOR GREATER ADJUSTMENT
  • FITS 2" X 2" TOWBAR RECEIVERS
  • EXTRA HEAVY DUTY 25MM THICK X 75MM WIDE BALL PLATFORM

GROSS TRAILER WEIGHT: 3650KG

TONGUE WEIGHT: 365KG

BALL HOLE SIZE: 7/8"

DROP: 57MM

RISE: 31MM

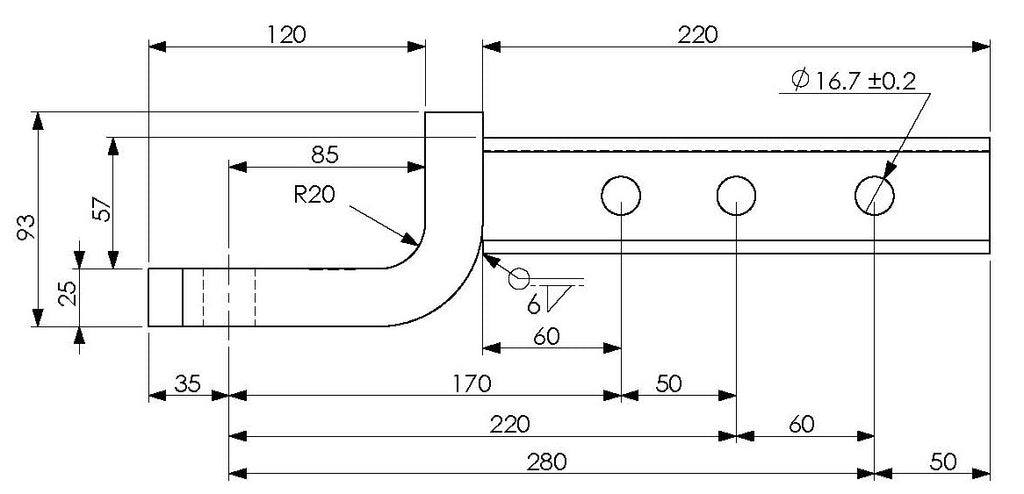

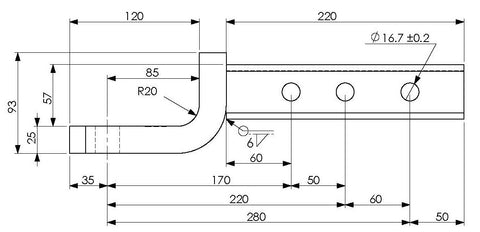

LENGTHS: APPROX. 255MM & 280MM (MEASURED FROM CENTRE OF PIN HOLES TO CENTRE OF BALL HOLE)

END OF SHANK TO FIRST PIN HOLE IS 50MM (SUITS SHORT SHANK RECEIVERS EG. FORD RANGER)
