MISTER HITCHES Clevis Mount 3500kg Heavy Duty with 1" Pin & Chain

Mister Hitches

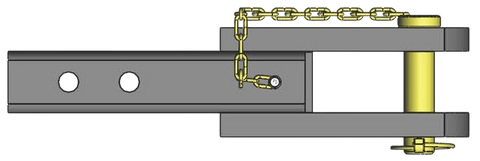

CLEVIS MOUNT HITCH

HEAVY DUTY

3500kg

with 1” PIN

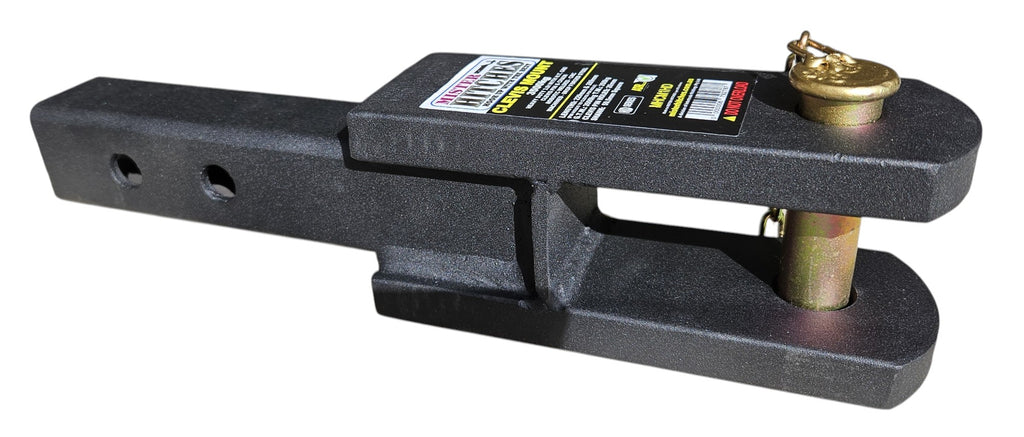

This Clevis Mount has been designed for strength. CNC machined and robotic welding makes this hitch one of the best of its kind.

Mainly used in rural areas for towing farming plant & equipment, eg. spreaders etc.

This Clevis Mount incorporates a super strong 1” dia. GR8 Clevis Pin which has been rated at 5700kg and is tethered to the mount using a zinc plated chain to prevent loss of the pin when not in use.

Another quality Mister Hitches Australia product.

Also available is a replacement Clevis Pin MHCMP2 25.4mm (1”) Clevis Pin

Features:

· G.T.W.: 3500kg  T.W.: 350kg

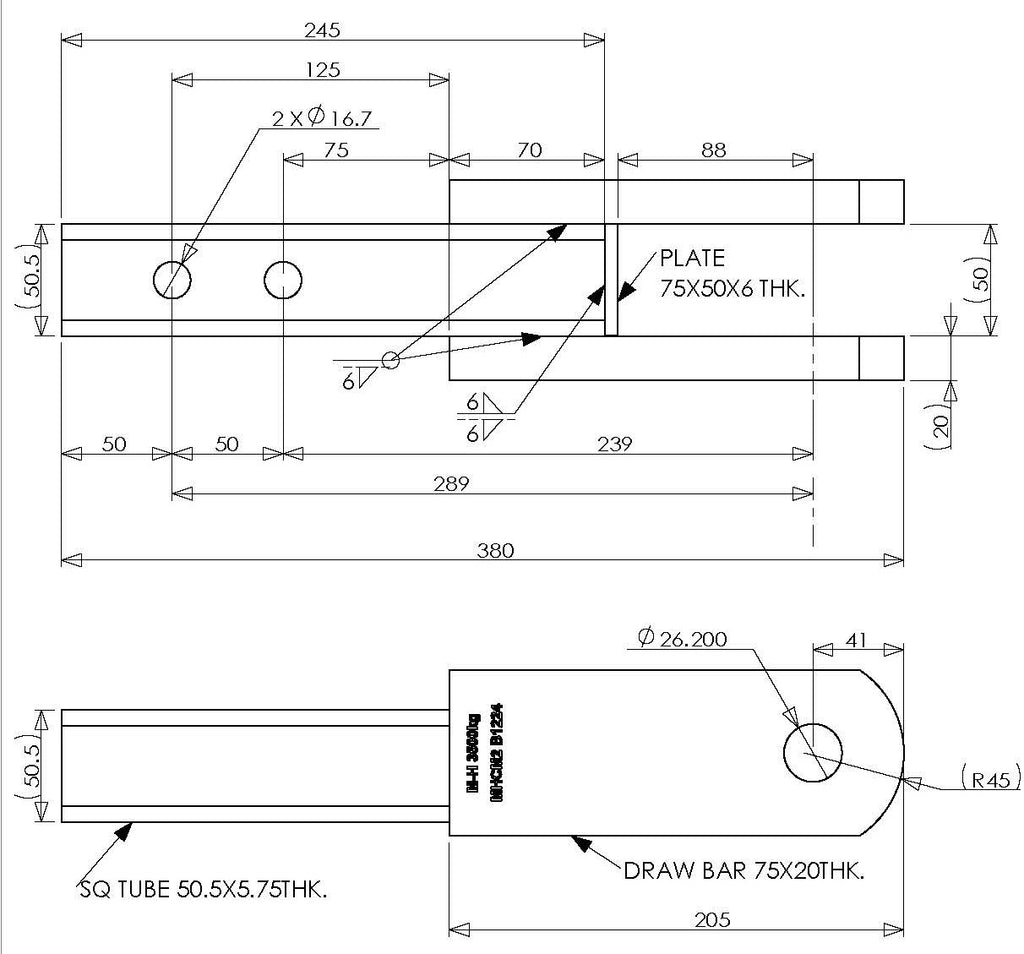

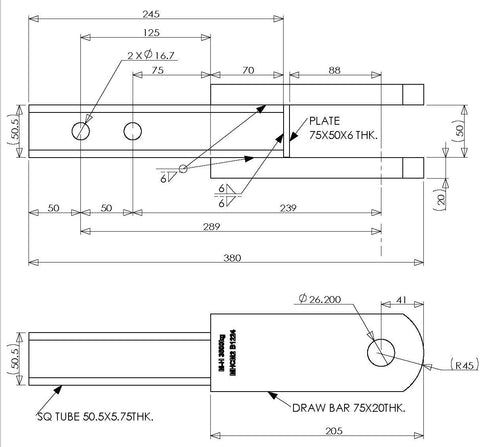

· 2 PIN HOLES GIVE LENGTHS OF 229 & 289mm (Measured from pin holes to clevis pin hole).

· INCLUDES 25.4mm (1”)  GRADE 8 ZINC CLEVIS PIN (5700kg rated) & SUPPORT CHAIN.

· USEABLE SHANK LENGTH : 175MM.

· 75mm x 20mm CLEVIS TANGS.

· INCLUDES STRENGTHENING PLATE BETWEEN TOP & BOTTOM TANGS.

· SEAGUARD MATTE BLACK POWDER COAT FINISH GIVES SUPERIOR CORROSION PROTECTION.

· OVERALL LENGTH: 380mm.
