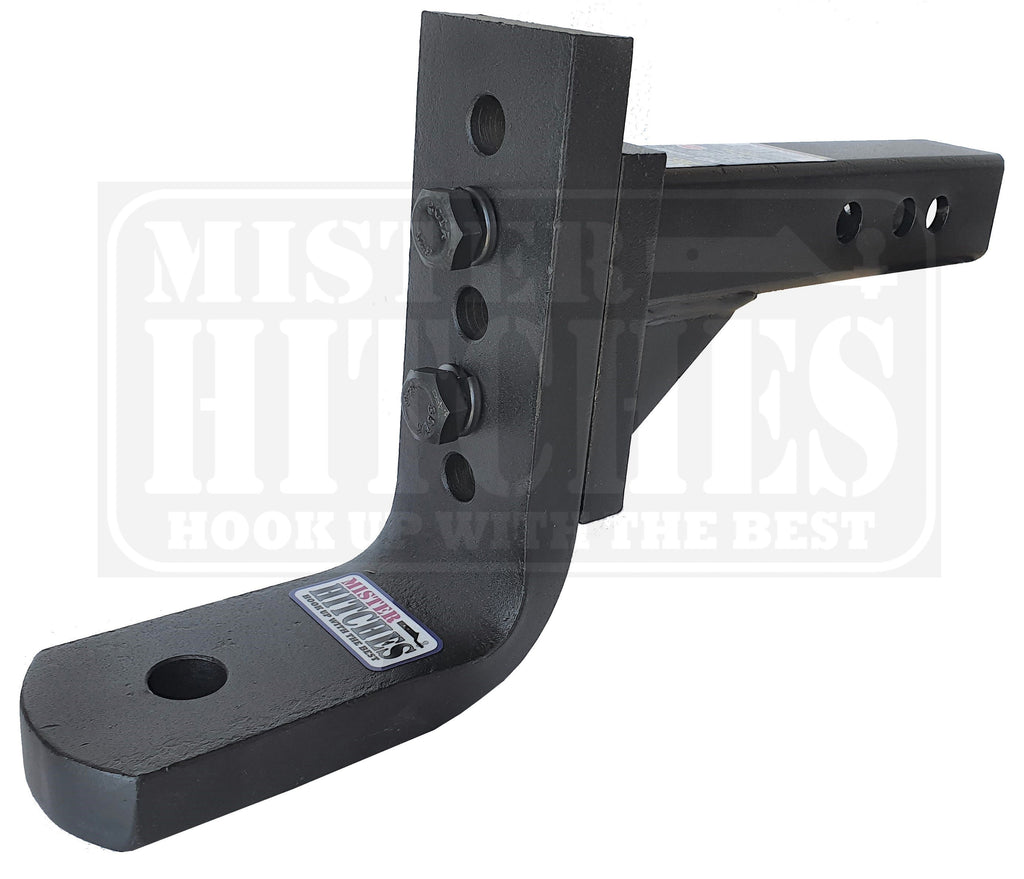

MHABM-5XHD
- ADJUSTABLE & FULLY REVERSIBLE - 12 STAGES
- BOTH SECTIONS OF THIS HITCH CAN BE INVERTED.
- 6 STAGES OF DROP - 80MM/110MM/130MM/140MM/160MM/190MM
- 6 STAGES OF RISE - 50MM/80MM/105MM/110MM/135MM/165MM
- 10MM DUAL SUPPORT GUSSETS FOR ADDED STRENGTH
- NEW MODEL WITH 3 PIN HOLES (RANGER SHORT SHANK COMPATIBLE)
- USES 12.9 GRADE HIGH TENSILE 16MM BOLTS - TORQUE TO 189Nm
- 25MM X 75MM HEAVY DUTY BALL PLATFORM.
- MATT BLACK SEAGUARD FINISH
- ROBOTIC WELDED FOR CONSISTENT QUALITY
- CNC MACHINED FOR MAXIMUM ACCURACY
- FITS 2" X 2" TOWBAR RECEIVERS
- COMPLIES WITH THE TEST REQUIREMENTS OF ADR62/02
GROSS TRAILER WEIGHT: 4000KG
TONGUE WEIGHT: 400KG
BALL HOLE SIZE: 7/8"
MAX DROP: 190MM
MAX RISE: 165MM
LENGTHS: (MEASURED FROM CENTRE OF PIN HOLE TO CENTRE OF BALL HOLE) 266/305/331MM
PIN HOLES TO END OF SHANK 50MM, 76MM, 115MM
END OF SHANK TO GUSSET 164MM
SUITS STONE STOMPER & MOST COUPLINGS EG. D035
MEASUREMENTS ARE APPROX.
