MHABM-5XHDS

MISTER HITCHES 4000kg Extra Heavy Duty Adjustable Ball Mount 12 Stage - Short Shank

  • Sale
  • Regular price
Tax included.


  • ADJUSTABLE & FULLY REVERSIBLE - 12 STAGES
  • BOTH PARTS OF THE HITCH ARE REVERSIBLE
  • 6 STAGES OF DROP - 80MM/110MM/130MM/140MM/160MM/190MM
  • 6 STAGES OF RISE - 50MM/80MM/105MM/110MM/135MM/165MM
  • 10MM DUAL SUPPORT GUSSETS FOR ADDED STRENGTH
  • NEW MODEL WITH SHORT LENGTH SHANK (RANGER SHALLOW RECEIVER COMPATIBLE PIN HOLE ) (50mm from end of shank))
  • USES 12.9 GRADE HIGH TENSILE 16MM BOLTS (TORQUE to 189Nm)
  • 25MM X 75MM HEAVY DUTY BALL PLATFORM.
  • MATT BLACK SEAGUARD FINISH
  • 5.75mm THICK STEEL SHANK
  • ROBOTIC WELDED FOR CONSISTENT QUALITY
  • CNC MACHINED FOR MAXIMUM ACCURACY
  • FITS 2" X 2" TOWBAR RECEIVERS
  • ADR62 COMPLIANT
  • ORIGINAL DESIGN BY MISTER HITCHES AUSTRALIA (NOT A COPY)

GROSS TRAILER WEIGHT: 4000KG

TONGUE WEIGHT: 400KG

BALL HOLE SIZE: 7/8"

MAX DROP: 190MM

MAX RISE: 165MM

LENGTH: (MEASURED FROM CENTRE OF PIN HOLE TO CENTRE OF BALL HOLE) 262MM

PIN HOLE TO END OF SHANK 50MM

END OF SHANK TO GUSSET 120MM

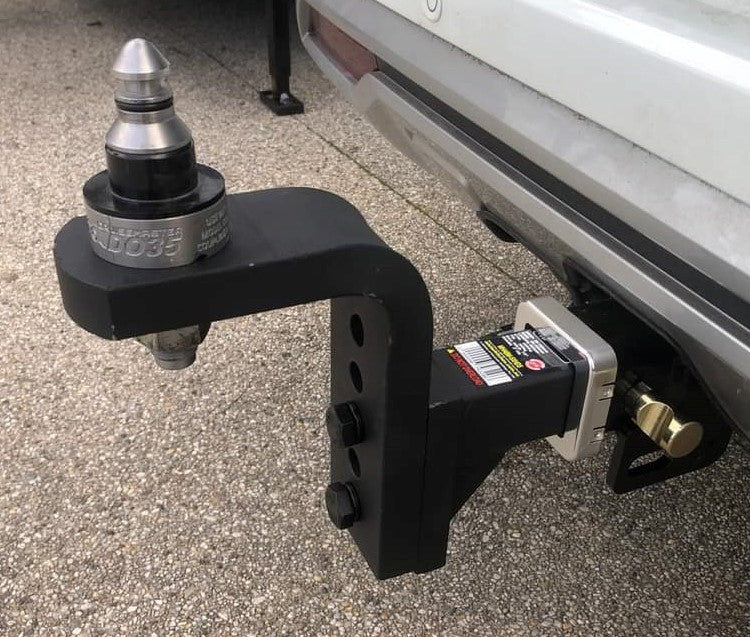

SUITS STONE STOMPER UNDER BALL BRACKET & MOST COUPLINGS EG. D035

MEASUREMENTS ARE APPROX.
