MHBRT4

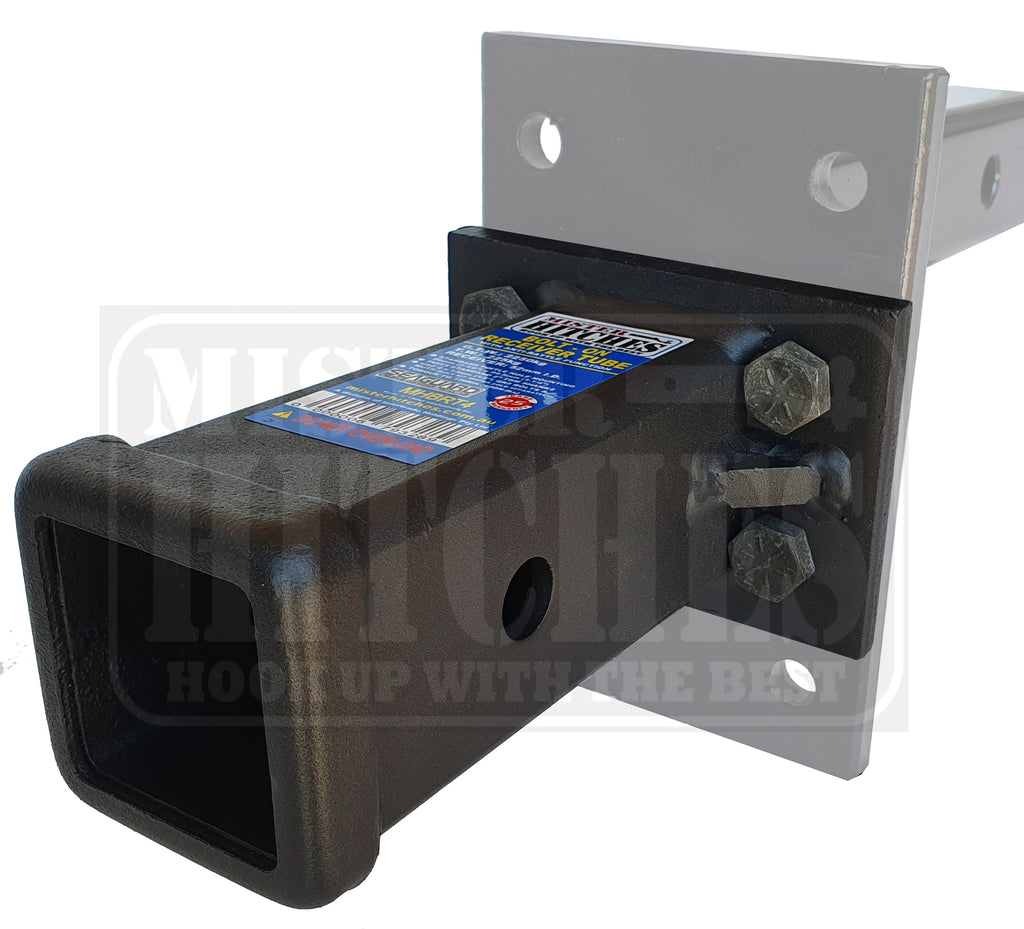

This handy bolt-on receiver is designed to bolt to existing pre-drilled mounting points in the rear frame cross brace of most Land Cruisers or Land Rovers. Can also bolt to any Pintle mount configuration. Eg. 86mm x 44.5mm (3-3/8” x 1-1/4”) Can also be mounted on any suitable mounting structure. Includes a anti-rattle bolt to hold the accessory firmly in the receiver tube. The hitch pin and mounting hardware are sold separately. NHP3 HITCH PIN - MHPBK HARDWARE
Features:
· G.T.W.: 2250kg T.W.: 225kg
· 5.75mm STEEL SHANK, ROBOTIC WELDED FOR STRENGTH. SHANK I.D. 52mm x 52mm

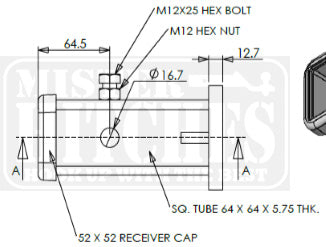

· BOLT PATTERN 86mm (3-3/8” ) x 44.5mm (1-1/4”) SUITS PINTLE MOUNTS, LAND CRUISER & LAND ROVER REAR FRAME/CROSS BRACE PRE-DRILLED 4 HOLE MOUNTING POINTS.
· INCLUDES STRENGTHENING GUSSETS AND COLLAR.
· INSTRUCTIONS INCLUDED
· SEAGUARD MATTE BLACK POWDER COAT FINISH GIVES SUPERIOR CORROSION PROTECTION.
· USE 13mm GRADE 8 BOLTS & NUTS & TORQUE TO 136Nm (100ft-lbs) BOLT HARDWARE SOLD SEPARATELY
(part no. MHPBK).
· DO NOT OVERLOAD.
