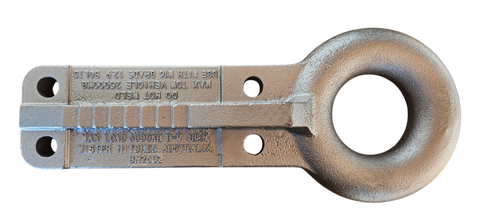

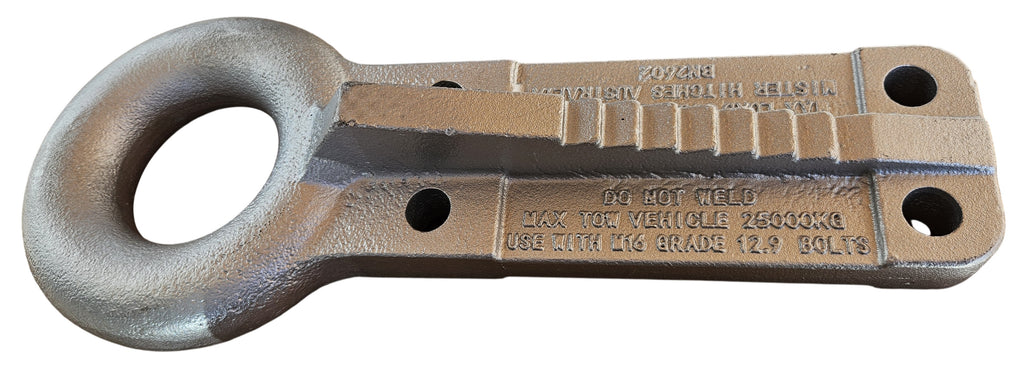

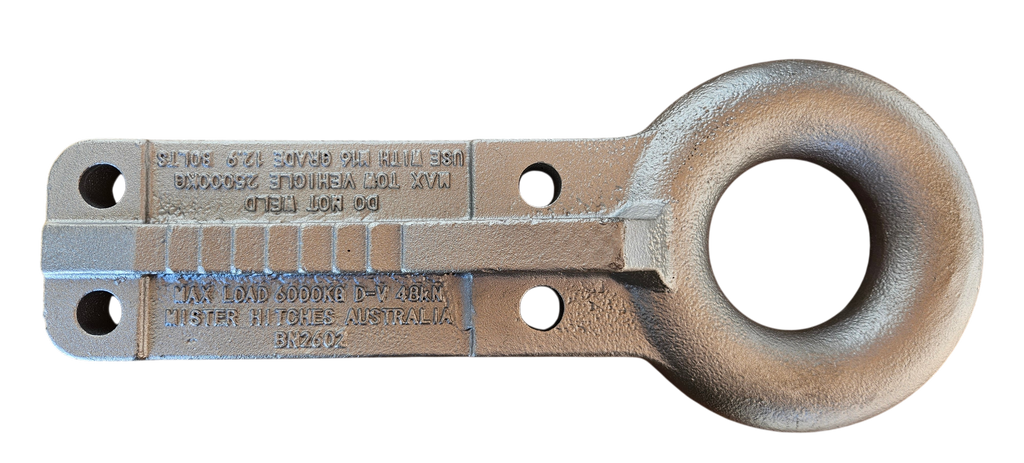

PINTLE FIXED RING COUPLING 6000kg - DACROMET - ADR62

· Max. G.T.W.: 6000kg - D-Value: 48Kn

· Q345 high grade forged steel. (AS3678 Grade 350)

· 75mm I.D. Ring - Centre of ring to 1st hole 116mm

· Dacromet - Dacrocoat finish - Premium Corrosion Protection.

· Standard coupling mounting position 182mm x 52mm

· Use with M16 12.9 Grade High Tensile mounting hardware.

· Instruction Sheet included

· Use with Pintle Hook

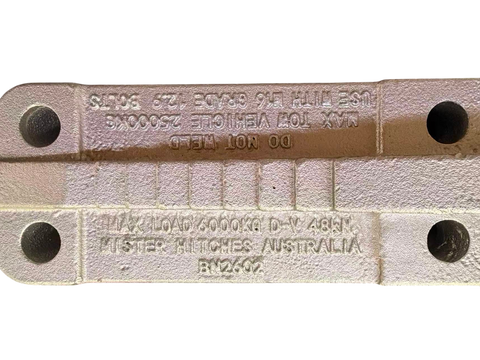

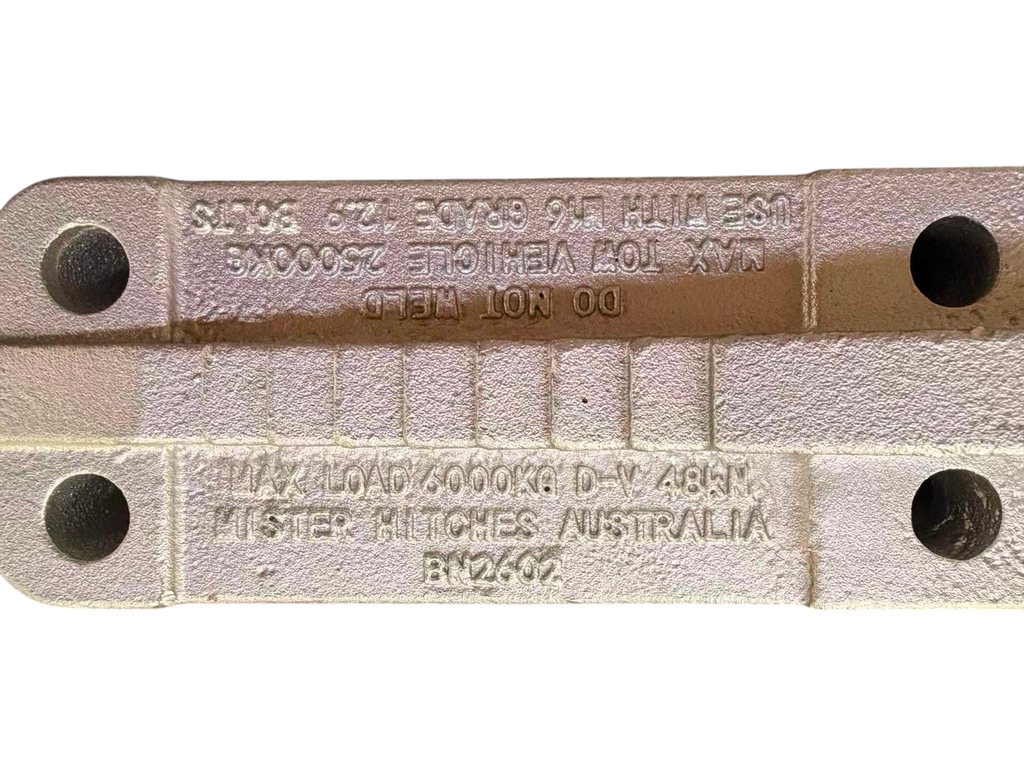

· Stamped as per ADR requirements including Batch Number

· ADR62/02 Compliant.

· DO NOT WELD

PART NUMBER: MHTCR75
